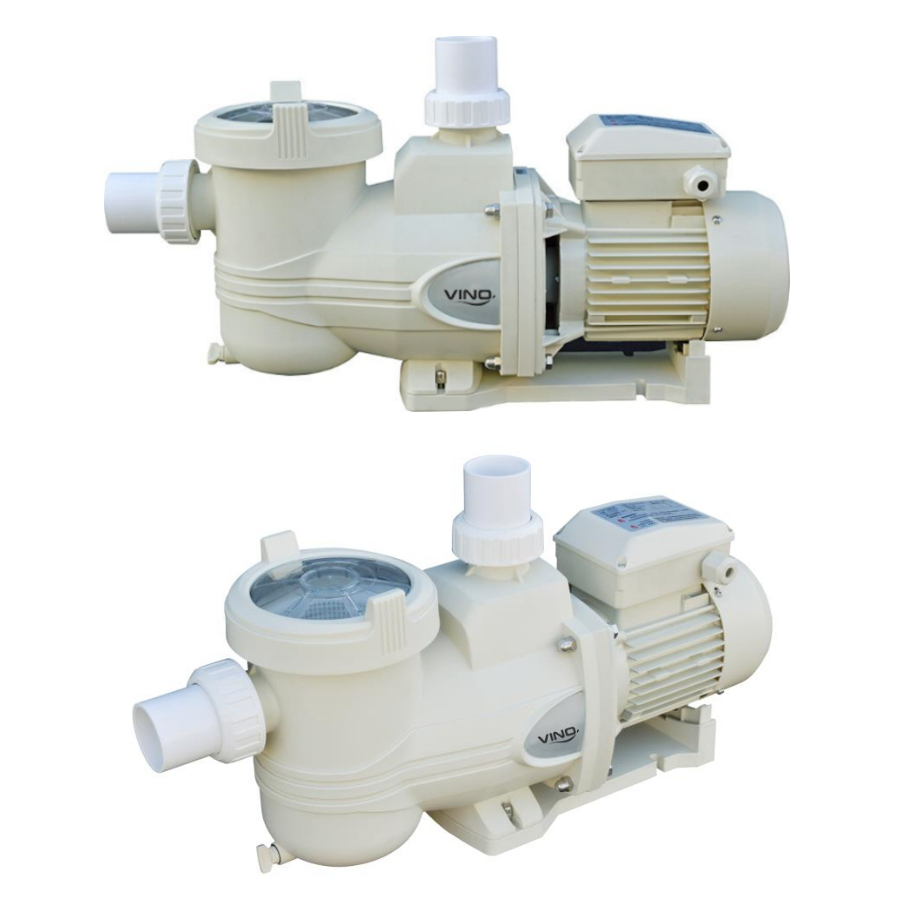

Model : VN150 VN 200
Material :
- Pump housing: Polypropylene 35% Fiberglass
- Filter basket: Polypropylene
- Shaft: SS316
- Bearing : NSK
- Mechanical seal : Carbon + Resin-Ceramics(Carbon, Ceramics. SS304, NBR)
- Impeller: Noryl + 30% Fiberglass
- Diffuser and pump base: PP+35% Fiberglass
Features :
- Pump inlet/outlet with external thread can connect with metric/imperial pipe, more convenient to operate.
- The pump can bear 25000 times of impact test, excellent perfomance and reliable quality.
- Lower noise, 0.75hp can lower then 65Db
- Liquid temperature: 5-50’c
- Ambient temperature : up to 45’C
- Maximum working pressure: 2.5bar
- Waterproof: IP55
- Thermal protection included
- Motor: 3000r.p.m
- Single phase: 220V/50hz
- 220V/60hz, 380V/50Hz are available on request
